Rodez v1.0 in use

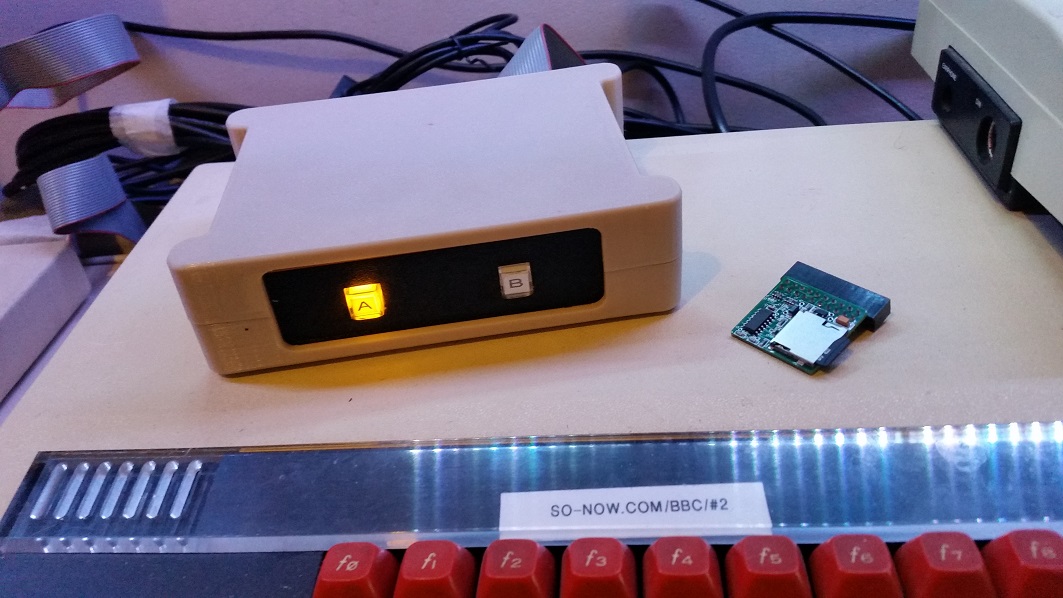

Our first version, with warm white LED back-lit buttons.
Attached to our BBC Model B.
Slot 'A' Is currently connected to our A4 Concept Keyboard.
At the moment, nothing is connected to slot 'B'.
This helps to demonstrate the solid top, without the slot for the Turbo MMFC.

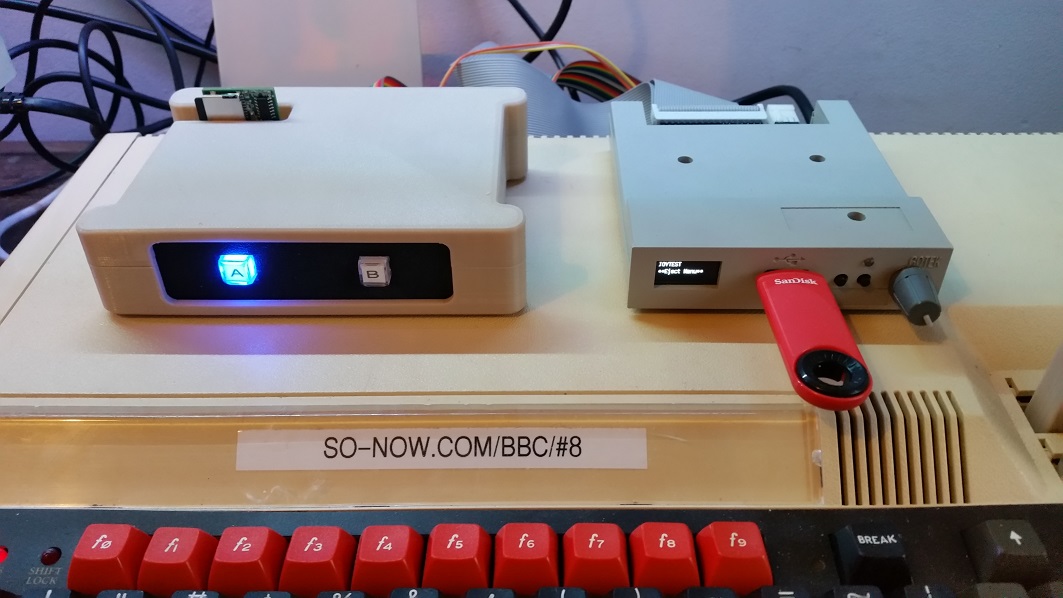

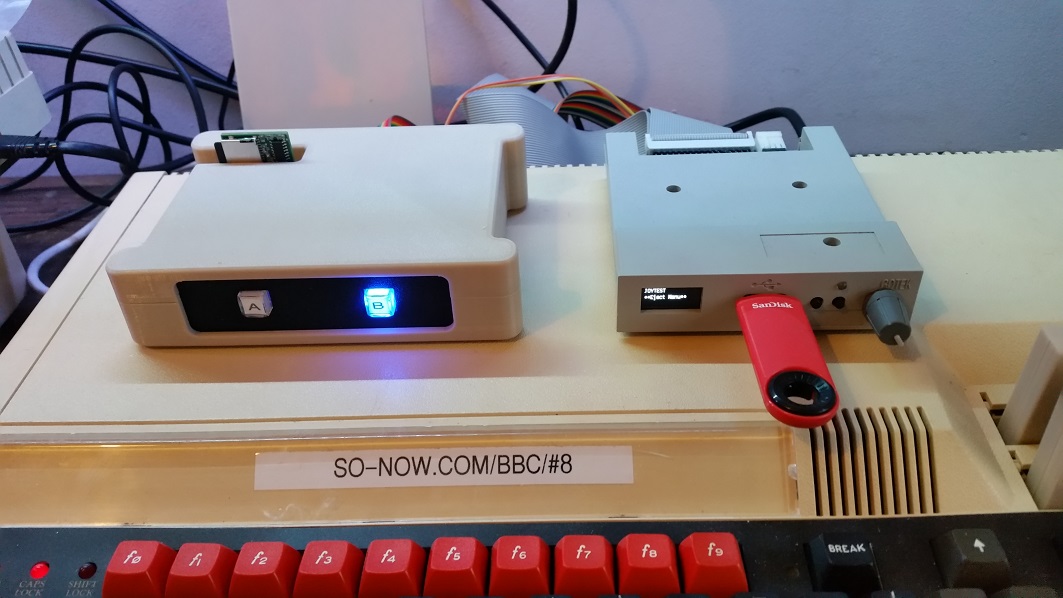

Our second with blue LED buttons.
This one is used on our BBC Master 128 with a MMFS Turbo in the 'A' slot and a Vela Mk II Data logger in the 'B' slot.
This shows how the 'slot-top' can be used to allow access to the micro SD card in the MMFC Turbo.
Click on the images for a bigger image.
Inner workings
The insides exposed.

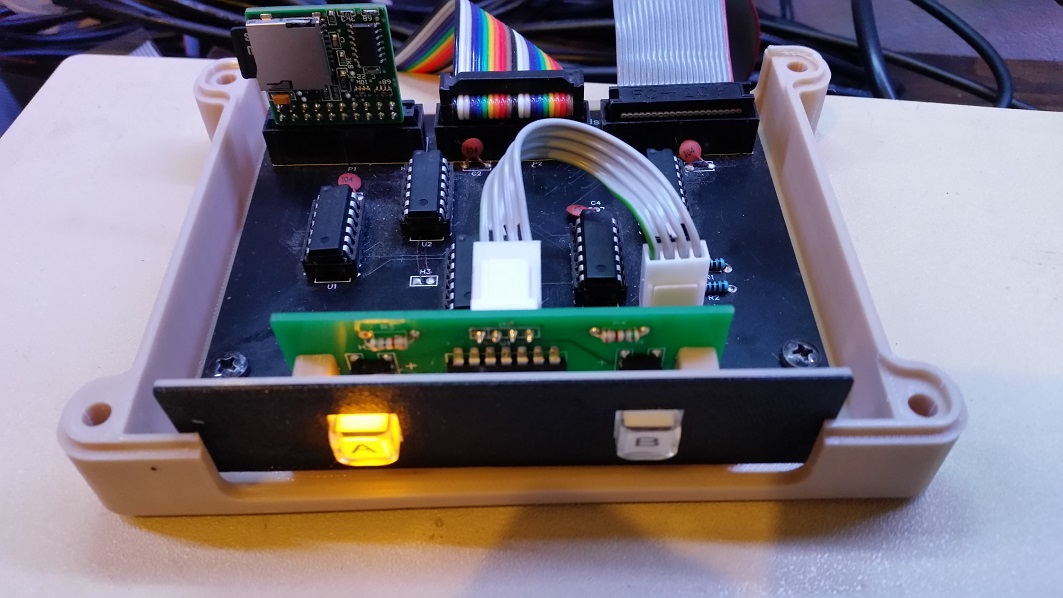

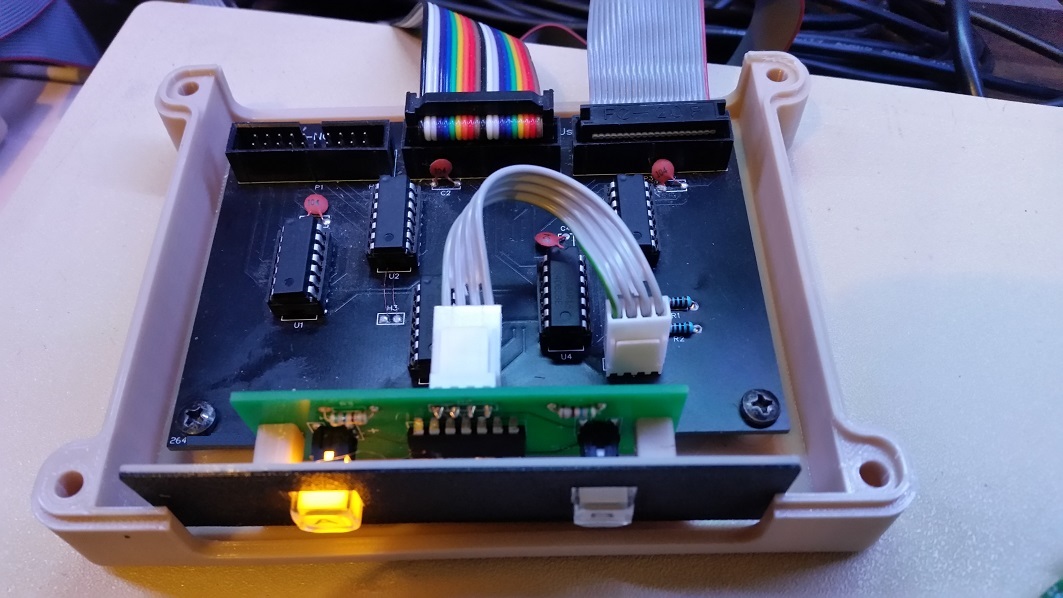

First with the 'A' slot empty, then with the 'A' slot populated with the Turbo MMFS.
Click on the images for a closer look.
case options
The original case design was for another project.

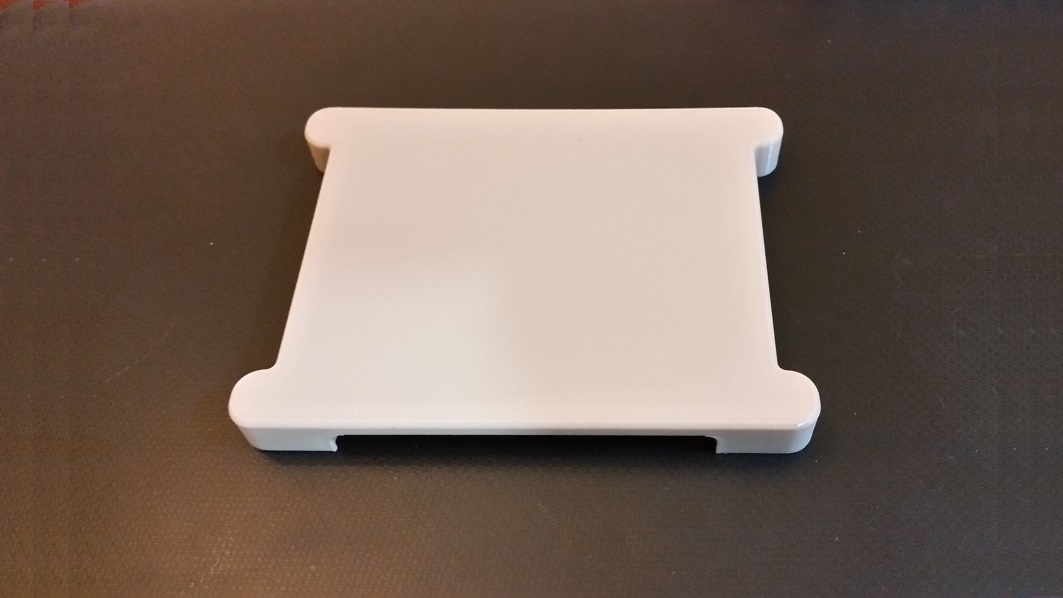

The plain top can be used where ribbon cables will exit from the rear of the switch.

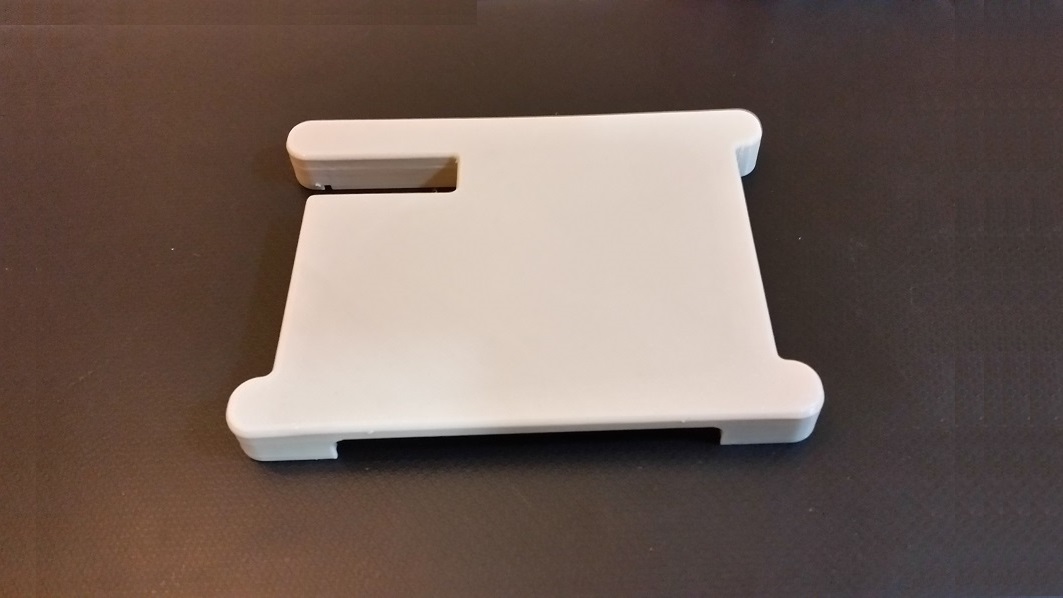

We designed the Slot-top version for those who may want to use a MMFC drive, more specifically the IFEL (ctorwy) MMFC Turbo device, as the SD card is accessible from the side of the slot.
Click on the images for a closer look.
This version of the Rodez is now obsolete.
Rodez v1.2 is now available here:
>>Rodez 1.2>>
